Description

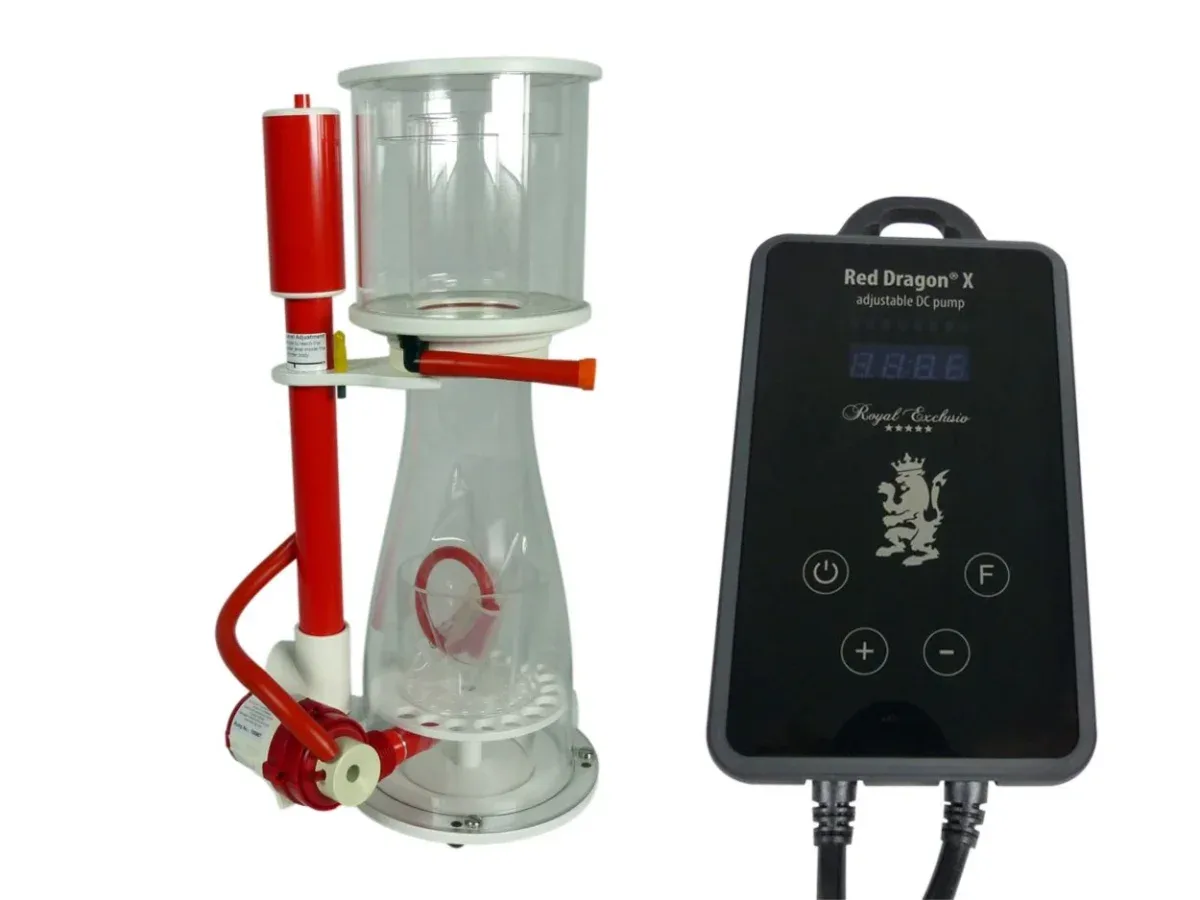

for aquariums up to 375 liter hard facts Bubble King ® Double Cone 150 : max. 750 l/h Air – 3.500 l/h Water = 1 Pump RD X 3000 DC 12V Base plate: 19,5 cm x 24,5 cm / height ~ 50 cm Water level: ~ 150 mm up to ~ 200 mm Outlet absorbate: 320 mm Weight skimmer: 5 kg inclusive pump Technical data Bubble King ® Double Cone 150: Skimmer-pump: Red Dragon ® X 3000 Delivery rate: 200-750 l/h Air inlet ~ 300-3.500 l/h Water inlet wattage power: Pmax = 30 Watt/h Speed adjustable Brushless DC pump Revolution per minute (rpm) – Display Adjustable in 8-steps from ~ 7W up to 30W Operating voltage: 100-240 Volt 50-60 Hz (12V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump without controller: 0,6 kg Height of intake side: center 45 mm Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height Saltwater resistant M4 grade 2 titanium screws Saltwater resistant parabolic rubber feet for acoustic decoupling Extreme low noise brushless DC-delivery pump with external power electronics High efficient technology, Sine Wave for very quiet running Inlet and Outlet complete with DIN connection, compact dimensions Easy usage and maintenance, low risk of calcification compact design against vibrations and oscillation CE conformity, developed and built high quality touchscreen display with feeding function (protection against dry-running, over heating, over voltage, blocking etc.) included in the scope of delivery: Pump with 2m supply line Controller with 1,5m supply line Power plug with 1,5m supply line / rubber connector Nozzle with Air- and Ozone connection Manual German/English Dimension skimmer without pump: 195 mm wide / 245 mm length / ~ 500 mm height Dimension skimmer with pump (90° to the torque tube): 210 mm wide / 310 mm length / ~ 500 mm height Dimension skimmer with pump (compared the torque tube): 180 mm wide / 370 mm length / ~ 500 mm height Weight skimmer: 5 kg inclusive pump The skimmer has default 2 pump connection options.
