Description

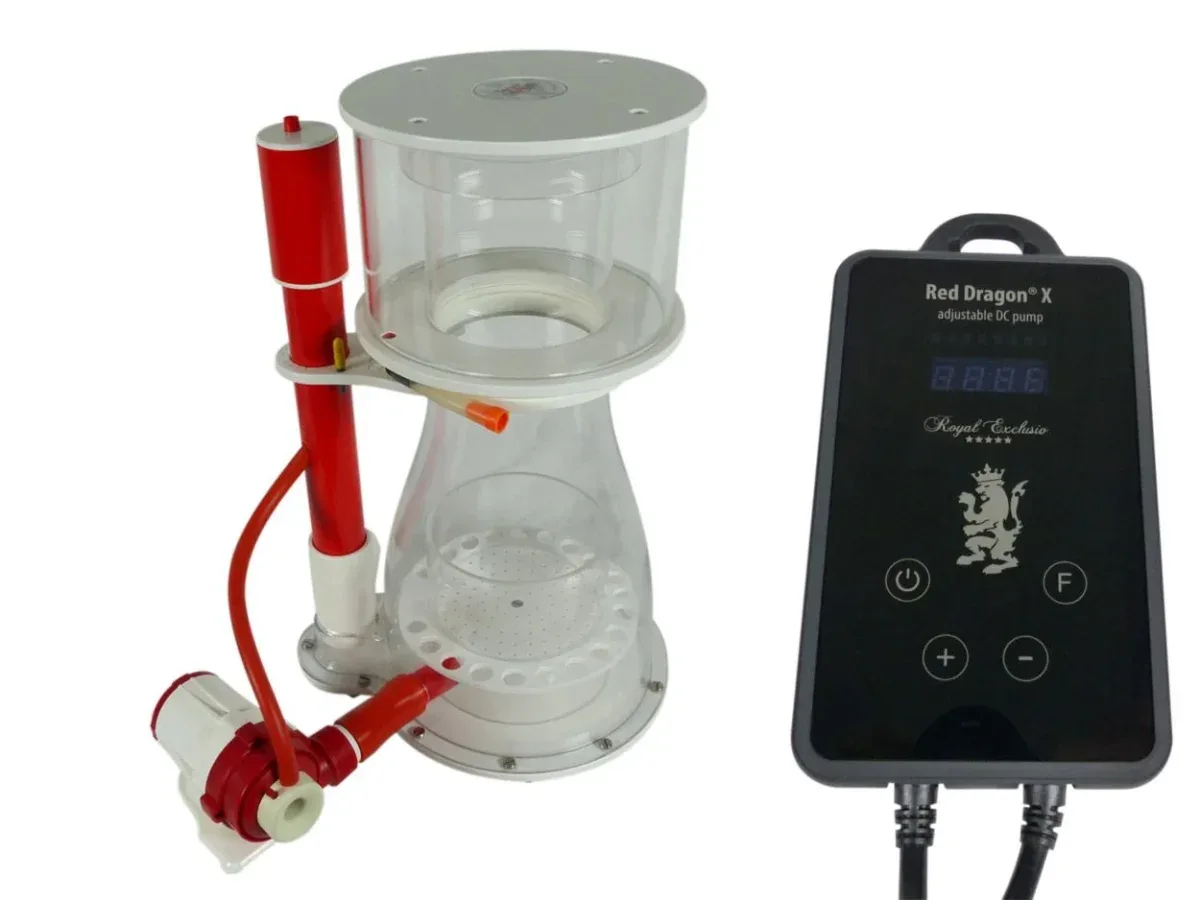

for aquariums up to 1.500 liter hard facts Bubble King ® Double Cone 250 RDX: 2.500 l/h Air – 6.500 l/h Water = 1 Pump RD X 6500 DC 24V Base plate: 30 cm x 37 cm / height ~ 59 cm Water level: ~ 200 mm up to ~ 250 mm Weight skimmer: 7,5 kg inclusive pump Technical data Bubble King ® Double Cone 250 RDX: Skimmer-pump: Red Dragon ® X 6500 Delivery rate: 500-2.500 l/h Air inlet ~ 600-6.500 l/h Water inlet wattage power: Pmax = 60 Watt/h Operating voltage: 100-240 Volt 50-60 Hz (24V Technology) Protection class pump: IP 68 control unit: IP 66 Dimension skimmer without pump: 300 mm wide / 370 mm length / ~ 590 mm height Dimension skimmer with pump: 320 mm wide / 510 mm length / ~ 590 mm height Red Dragon ® X pump 60Watt 2.500 l/h Technical data Red Dragon ® X pump 60 Watt / 2.500 l/h air intake : Skimmer-pump: Red Dragon ® X 6500 Delivery rate: 500-2.500 l/h Air inlet ~ 600-6.500 l/h Water inlet wattage power: Pmax = 60 Watt/h Speed adjustable Brushless DC pump Revolution per minute (rpm) – Display Adjustable in 8-steps from ~ 8W up to 63W Operating voltage: 100-240 Volt 50-60 Hz (24V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump without controller: 1,25 kg Height of intake side: center 45 mm Dimension pump: 90 mm wide / 150 mm length / ~ 130 mm height Dimension control unit: 30 mm wide / 95 mm length / ~ 105 mm height Saltwater resistant M4 grade 2 titanium screws Saltwater resistant parabolic rubber feet for acoustic decoupling Extreme low noise brushless DC-delivery pump with external power electronics High efficient technology, Sine Wave for very quiet running Inlet and Outlet complete with DIN connection, compact dimensions Easy usage and maintenance, low risk of calcification compact design against vibrations and oscillation CE conformity, developed and built high quality touchscreen display with feeding function (protection against dry-running, over heating, over voltage, blocking etc.) included in the scope of delivery: Pump with 2m supply line Controller with 1,5m supply line Power plug with 1,5m supply line / rubber connector Nozzle with Air- and Ozone connection Manual German/English
