Description

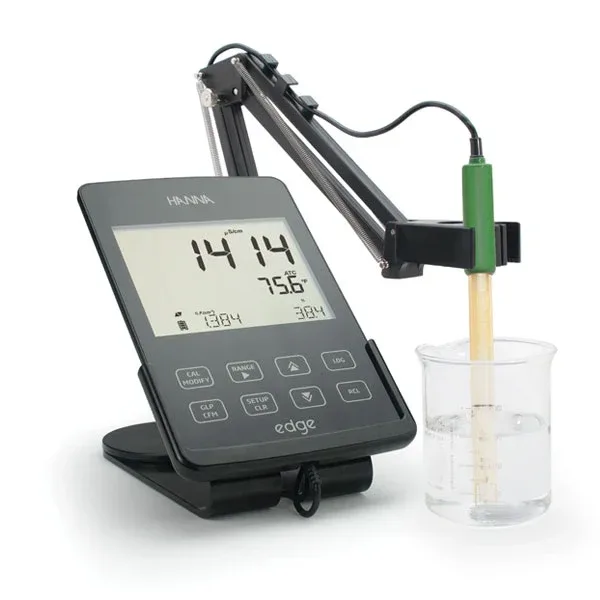

Edge is the world’s first hybrid meter and the latest innovation from Hanna Instruments offering some of the most advanced technology for measuring Conductivity. The smart, slim-line design means Edge can be used as a hand held, wall mount or bench top meter. Combined with sophisticated technology, it delivers fast accurate results with laboratory grade precision whichever format you choose to use. Cutting-edge design, capacitive touch keypad and an intuitive user interface are just some of the attributes that make this meter stand out. EC is measured through a unique digital electrode. Connected via an easy plug-in 3.5mm connector, this smart electrode enables Edge to automatically recognise and store sensor type, ID and calibration information. Programmed for basic and advanced modes, Edge offers simplified screen features for routine measurements or detailed data display. It warns users if the electrode is not clean or if buffers are contaminated during calibration using the exclusive Hanna CAL-CHECK feature. Bluetooth® Connection – Wire free data transmission using Bluetooth 4 low power technology. Compatible with the HANNA Edge Blu® meter, and also allows transmission of pH and temperature data to your mobile phone or tablet in conjunction with the free HANNA Lab App. Key features capacitive touch keypad large 140mm LCD display with clear full text readout digital smart electrode enable edge to automatically recognise and store sensor type, ID and calibration information range: 0.00 to 29.99 uS/cm; 30.0 to 299.9 uS/cm; 300 to 2999 uS/cm resolution: 0.01 uS/cm; 0.1 uS./cm; 1 uS/cm accuracy: +/- 1% of reading slim, lightweight design means Edge can be hand-held, wall-mounted or used as a bench meter Main benefits calibration: automatic with 7 standard buffers and 2 custom buffers programmed for basic and advanced modes Hanna CAL-CHECK warns if electrode is not clean or buffers are contaminated PC interface via micro USB data download onto USB stick via standard USB GLP data automatically transferred Range TDS 0.00 to 14.99 mg/L (ppm); 15.0 to 149.9 mg/L (ppm); 150 to 1499 mg/L (ppm); 1.50 to 14.99 g/L; 15.0 to 100.0 g/L; up to 400.0 g/L (absolute TDS) Range Salinity 0.0 to 400.0 % NaCl; 0.01 to 42.00 PSU; 0.0 to 80.0 g/L Resolution EC 0.01 uS/cm; 0.1 uS/cm; 1 uS/cm; 0.01 mS/cm; 0.1 mS/cm Resolution TDS 0.01 ppm; 0.1 ppm; 1 PPM; 0.01 g/L; 0.1 g/L Resolution Salinity 0.1 % NaCl; 0.01 PSU; 0.1 g/L Accuracy EC ±1% of reading Accuracy TDS ±1% of reading Accuracy Salinity ±1% of reading EC Calibration 1 point offset calibration; 1 point slope calibration in EC standard 84 uS/cm, 1413 uS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 118.8 mS/cm TDS Calibration through EC calibration Salinity Calibration 1 point with HI-7037L 100% NaCl sea water standard Temperature Compensation noTC, ATC (-20.0 to 120.0 °C) Electrode HI 763100 Conductivity probe (included) Environment 0 to 50°C (32 to 122°F); RH max 95% Dimensions 202 x 140 x 12.7 mm Weight 250 g
