Description

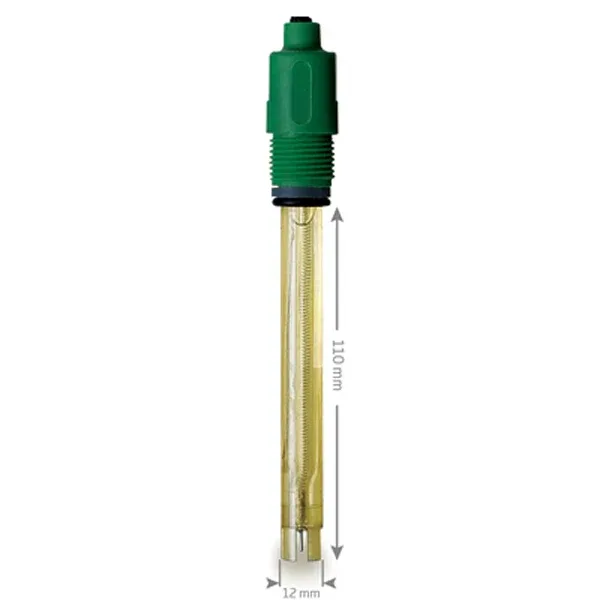

HI-3214p Spare electrode for general purpose, agriculture and disinfection The HI-3214 is designed for use with swimming pool monitors listed below: About the HI-982401 HI-982401 has been manufactured to serve as a monitor for swimming pools, spas and research where only the ORP needs to be checked and space or cost are major factors. Thanks to its compact size of 9 cm (3.3″) diameter, HI-982401 with its electrode HI-3214P, can be mounted in confined spaces and right next to the vat or barrel containing the chemicals. The casing also incorporates a moulded eye so that it can be installed with a single fixing. . . . and HI-981406 The HI-981406 has been specially designed for water treatment and swimming pool applications where both pH and ORP need to be monitored. Instead of sourcing two meters, users can now continuously measure both pH and ORP with HI-981406. More about the electrode The shielding around the spherical glass tip minimises breakage due to accidental bumping or dropping of the electrode. pH/ORP/DO/ISE/EC Measurement Range ORP: +/-2000mV Junction Type/Flow Rate Cloth Type of Electrolyte Gel Body Material PEI Tip / Shape platinum pin Matching Pin No Max. Pressure 3.0 Bar Temperature Operating Range 0 to 80°C (32 to 176°F) – GP Outer Diameter 12 mm Cable coaxial; 2 m (6.6’) Connector Type multi-pin BNC Amplifier No
