Description

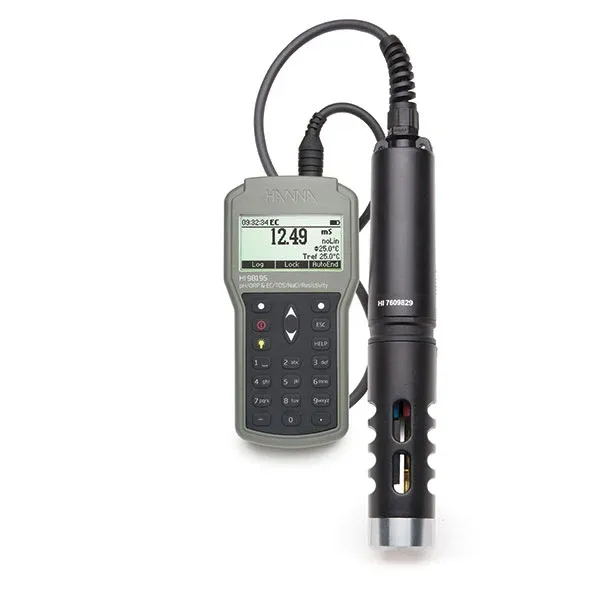

HI-98195 provides multi-parameter measurement in a compact and rugged IP67 waterproof enclosure. Ideal for demanding application, this meter features our rugged, quick connect multi-function probe with field replaceable sensors. A backlit, graphic LCD provides easy to read resolution even in low-lit areas. A combination of dedicated and soft keys allows easy, intuitive operation in a choice of languages. HI-98195 allows users to store up to 45,000 continuous or log-on demand samples with logging intervals from one second to three hours. Logged data can be later transferred to a PC with the HI-920015 micro USB cable and Hanna software. Comprehensive GLP data includes data from the last five calibrations. The contextual Help Menu can be accessed to obtain on-screen information and assistance about each feature at the touch of a button. pH specific features Up to three point calibration with five standard buffers and one custom buffer available EC/TDS/Resistivity specific features Single point calibration from six standards (84µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80 mS/cm, 111.8 mS/cm) Automatic temperature compensation configurable temperature coefficient range from 0.00 to 6.00%/°C Choice of reference temperatures at 20 or 25°C Absolute conductivity can be displayed along with the temperature compensated value Auto ranging Practical Salinity Scale (PSU) based on conductivity calibration Key features IP67 rated waterproof, rugged enclosure for meter, IP68 for probe Colour-coded, field replaceable sensors Auto sensor recognition Automatic logging of up to 45,000 samples Store measurement data at the press of a button On-screen context specific help is readily available at the press of a button PC connectivity via opto-isolated micro-USB with Hanna software Up to 360 hours of battery life, powered by (4) 1.5Vbatteries The HI-7698195 probe features a quick connect DIN connector that makes a waterproof connection with the meter IP68 – Electrode is dust-tight and protected against the effects of continuous immersion in water beyond 1m. PC Interface – Download test results to a computer programmed with HANNA’s Windows® compatible software (HI-92000), directly from equipment via a USB port or a RS232 cable outlet. pH/mV Range 0.00 to 14.00 pH/± 600.0 mV Resolution 0.01 pH/ 0.1 mV Accuracy ±0.02 pH/ ±0.5 mV Calibration automatic one, two or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer ORP Range ±2000.0 mV ORP Resolution 0.1 mV ORP Accuracy ±1.0 mV ORP Calibration automatic at one custom point (relative mV) EC Range 0 to 200 mS/cm (absolute EC up to 400 mS/cm) EC Resolution Manual: 1μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; automatic : 1μS/cm from 0 to 9999 μS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm; automatic mS/cm : 0.001 mS/cm from 0.000 to 9.999 mS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm EC Accuracy ±1% of reading or ± 1μS/cm whichever is greater EC Calibration automatic single point, with six standard solutions (84μS/cm, 1413μS/cm, 5.00mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point TDS Range 0 to 400.0 ppt (g/L) (the maximum value depends on the TDS factor) TDS Resolution manual : 1 ppm (mg/L); 0.001 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L); automatic : 1ppm (mg/L) from 0 to 9999 ppm (mg/L); 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L); automatic ppt (g/L): 0.001 ppt (g/L) from 0.000 to 9.999 PPT(g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 pp (g/L) TDS Accuracy ±1% of reading or ±1 ppm (mg/L) whichever is greater TDS Calibration based on conductivity or salinity calibration Resistivity Range 0 to 999999 Ω.cm; 0 to 1000.0 kΩ.cm; 0 to 1.0000 MΩ.cm Resistivity Resolution dependent on resistivity reading Resistivity Calibration based on conductivity or salinity calibration Salinity Range 0.00 to 70.00 PSU Salinity Resolution 0.01 PSU Salinity Accuracy ±2% of reading or ±0.01 PSU whichever is greater Salinity Calibration based on conductivity calibration Seawater σ Range 0.0 to 50.0 σt, σ 0 , σ 15 Seawater σ Resolution 0.1 σ t, σ 0 , σ 15 Seawater σ Accuracy ±1 σ t, σ 0 , σ 15 Seawater σ Calibration based on conductivity or salinity calibration Temperature Range -5.00 to 55.00°C Temperature Resolution 0.01°C Temperature Accuracy ±0.15°C Temperature Calibration Automatic at one custom point Additional Specifications Maximum probe immersion Depth – 20 metres Temperature compensation automatic from -5 to 55°C Logging Memory 45,000 records (continuous logging or log-on demand of all parameters Logging Interval one second to three hours PC Connectivity via USB (with Hanna PC software) Environment 0 to 50°C; RH 100% IP67 Battery Type/Life 1.5V AA batteries (4)/approximately 360 hours of continuous use without backlight (50 hours with backlight) Dimensions/Weight 185 x 93 x 35.2 mm/400g Ordering information: HI-98195 is supplied with HI-7698195/4 multiparameter probe, HI-7698194-1 pH/ORP sensor, HI-7698194-3 EC sensor, HI-9828-20 quick calibration solution, HI-76981952 probe maintenance kit, HI-76981943 calibration beaker, HI-9298194 Hanna PC software, HI-920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality certificate, and rugged carrying case with custom insert.
