Description

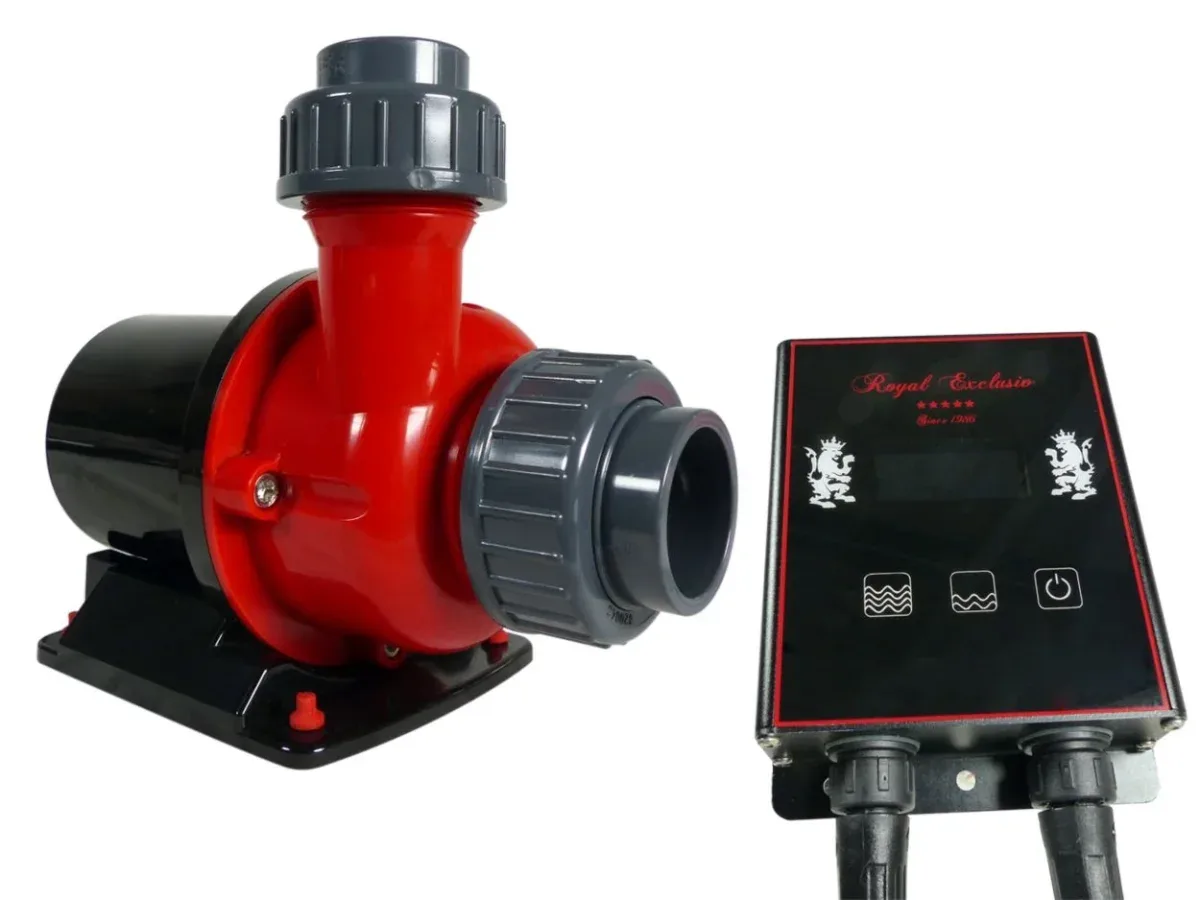

Products description Red Dragon ® 5 ECO pump 130 Watt / 11,0m³ / 24V Technical data Red Dragon ® 5 ECO pump 130 Watt 11,0 m³: 130 Watt/h 6,9 mtr. pressure height Speed adjustable Brushless DC pump Watt-, Power consumption and Revolution per minute (rpm) – Display Adjustable in 2-watt-steps from 2W up to 130W intake side 40 mm (1.25″) – pressure side 32 mm (1″) Operating voltage: 100-240 Volt 50-60 Hz (24V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump without controller: 3,5 kg Height of intake side: center 75 mm Dimension pump: 130 mm wide / 230 mm length / ~ 190 mm height Dimension control unit: 50 mm wide / 100 mm length / ~ 190 mm height Operating_and_maintenance_manual .pdf Video KEY LOOK On / Off Saltwater resistant M5 grade 2 titanium screws Saltwater resistant parabolic rubber feet for acoustic decoupling Extreme low noise brushless DC-delivery pump with external power electronics High efficient technology, Sine Wave for very quiet running Inlet and Outlet complete with DIN connection, compact dimensions Easy usage and maintenance, low risk of calcification Heavy and massive craftsmanship against vibrations and oscillation CE conformity, developed and built quality power supply from ” Mean Well ” high quality touchscreen display with a lot extra functions (protection against dry-running, over heating, over voltage, blocking etc.) 10V connection/controlling with 3.5mm TS-connector (phone jack) 3m cable between pump and controller 1,5m cable plug connection EU/US (Rubber connector)
