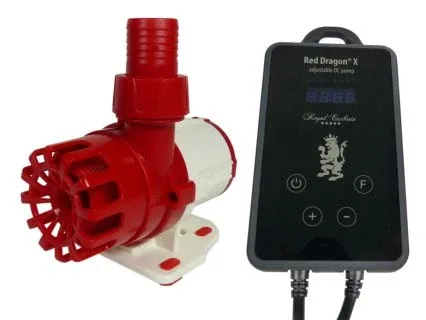

Red Dragon ® X pump 40 Watt / 3m³ / 12V Technical data Red Dragon ® X pump 40 Watt 3,5 m³: max. 40 Watt/h 3,75 mtr. pressure height Speed adjustable Brushless DC pump Revolution per minute (rpm) – Display Adjustable in 8-steps from ~ 7W up to 40W Intake side 25 mm (0.75″) – pressure side 25 mm (0.75″) Operating voltage: 100-240 Volt 50-60 Hz (12V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump without controller: 0,6 kg Height of intake side: center 45 mm Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height Saltwater resistant M3 grade 2 titanium screws Saltwater resistant parabolic rubber feet for acoustic decoupling Extreme low noise brushless DC-delivery pump with external power electronics High efficient technology, Sine Wave for very quiet running Inlet and Outlet complete with connection, compact dimensions Easy usage and maintenance, low risk of calcification compact design against vibrations and oscillation CE conformity, developed and built high quality touchscreen display with feeding function (protection against dry-running, over heating, over voltage, blocking etc.) included in the scope of delivery: Pump with 2m supply line Controller with 1,5m supply line Power plug with 1,5m supply line / rubber connector with inlet protection with 20mm socket and 25mm socket with O-rings Manual German/English
