Description

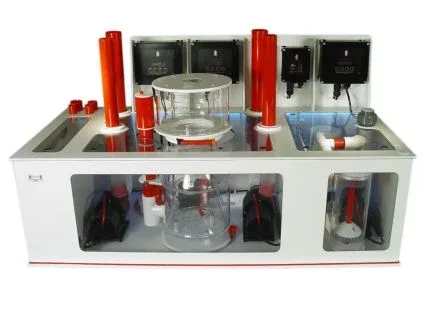

Royal Exclusiv Dreambox Closed Loop System – Set 3D Complete System Configuration The system includes: Bubble King® Supermarin 250 protein skimmer with Red Dragon® 3 pump One 3.5 L media reactor One 3.5 L pellet reactor Internal plumbing with adjustable valves Two Red Dragon® 3 Speedy 230 W Closed Loop pumps One Red Dragon® 3 Speedy 150 W return pump The complete system is fully assembled and ready for installation. Dreambox Size S – Technical Specifications Dimensions Width: 130 cm Length: 60 cm Height: 40 cm Skimmer chamber height: 58 cm Controller cockpit height: 70 cm Closed Loop piping height: 74 cm Total water volume: approximately 275 liters Connections Inlets 50 mm 40 mm 32 mm 32 mm (red PVC piping) Outlet 40 mm DIN connection for water recirculation Closed Loop connections 2 × 63/50 mm red PVC pipes Adjustable by valves Construction and Materials The Dreambox is manufactured from high-quality rigid PVC and Plexiglas®. All joints are hot-gas welded rather than glued, providing exceptional strength and eliminating the risk of silicone seal failures commonly associated with glass sumps. Key Features 8 mm PVC and acrylic construction Extremely quiet operation Superior vibration and noise damping Intelligent forced water distribution through all chambers Integrated CNC-machined emergency overflows Overflow-safe design, even with completely blocked filter socks Saltwater-resistant titanium bolts Oxygen degassing chamber Adjustable skimmer water level from 15 to 27 cm Integrated controller cockpit LED lighting Filter socks in various micron ratings Precision CNC-machined covers Fully upgradeable with optional accessories 100% handmade in Germany More than 30 years of experience in PVC filtration systems Bubble King® Supermarin 250 Internal Protein Skimmer Suitable for aquariums between 1,000 and 3,000 liters. Specifications Red Dragon® 3 Mini Speedy pump Adjustable speed: 300–3000 rpm Power consumption: 15–50 W Air intake: 1,700 l/h Water throughput: approximately 4,000 l/h Operating voltage: 230 V / 50 Hz Protection class: IP68 Weight: 11 kg Dimensions Without pump: Width: 330 mm Length: 290 mm Height: 580 mm Red Dragon® 3 Speedy Return Pump – 150 W Specifications Maximum flow rate: 18,000 l/h Maximum head height: 5.75 m Adjustable output from 20 to 150 W Brushless DC motor 10 V control interface Titanium rotor and stator Ceramic bearings IP68 pump protection Extremely low-noise operation Features Anti-lime bypass system (AKB) Acoustic decoupling rubber feet Heavy-duty construction to minimize vibration Easy maintenance and reduced calcification Designed and manufactured in Germany Closed Loop Circulation Pumps 2 × Red Dragon® 3 Speedy 230 W Per Pump Maximum flow rate: 24,000 l/h Maximum head height: 6.75 m Intake connection: 63 mm Outlet connection: 50 mm Brushless DC motor Titanium rotor and stator Ceramic bearings IP68 protection Combined Closed Loop Flow 48,000 l/h Reactor System Media Reactor – 3.5 L Total volume: 3.4 liters Media capacity: approximately 1.4 liters Constructed from PVC and Plexiglas® Universal design for various filter media Hand assembled in Germany Pellet Reactor – 3.5 L Total volume: 3.4 liters Pellet capacity: approximately 1.25 liters Includes conversion kit Solid PVC wedge with titanium bolt Increased flow configuration Pump Controller Functions Integrated controller features include: Food timer (1–30 minutes) Manual output adjustment Interval mode External 10 V control Future LAN control capability Adjustable food timer settings Interval programming Clock settings Language selection (German or English) The pumps are compatible with aquarium controllers and automation systems. Pricing Component Price Dreambox Closed Loop Set 3D €2,122.22 Bubble King® Supermarin 250 + RD3 €1,552.69 Red Dragon® 3 Speedy Return Pump 150 W €1,057.75 Media Reactor 3.5 L €300.59 Pellet Reactor 3.5 L €348.19 Internal Reactor Plumbing €278.00 Two Red Dragon® 3 Speedy 230 W Closed Loop Pumps €2,441.80 Subtotal €8,101.24 Package Discount (7.5%) -€607.59 Total Package Price €7,493.65 Shipping costs are additional. Delivery within Germany on a pallet is approximately €154.30. Complete system supplied fully assembled, including controller holders and vibration-decoupling mounts, ready for installation.
