Description

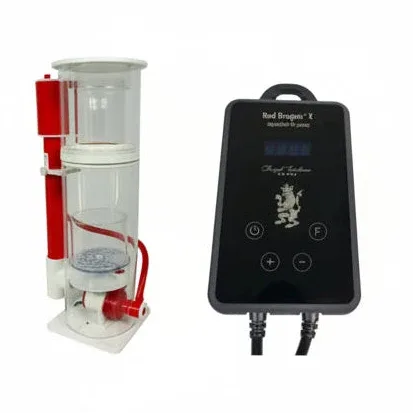

PRODUCTS DESCRIPTION for aquariums from 200 liter – 500 liter Mini Bubble King 160 RDX : max. 750 l/h Air – 3.500 l/h Water = 1 Pump Red Dragon ® X 3000 DC 12/24V Base plate: 18 cm x 18 cm / height ~ 56 cm Technical data Mini Bubble King 160 : Skimmer-pump: Red Dragon ® X 3000 Delivery rate: 200-750 l/h Air inlet ~ 300-3.500 l/h Water inlet wattage power: Pmax = 30 Watt/h Speed adjustable Brushless DC pump Revolution per minute (rpm) – Display Adjustable in 8-steps from ~ 7W up to 30W Operating voltage: 100-240 Volt 50-60 Hz (12/24V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump without controller: 0,6 kg Height of intake side: center 60 mm Dimension pump: 80 mm wide / 130 mm length / ~ 110 mm height Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height Water level: ~ 130 mm up to ~ 300 mm Weight skimmer: 6 kg included pump Height of intake side: center 60 mm Dimension skimmer: 180 mm wide / 260 mm length / ~ 555 mm height RDX Skimmer Pump – Operating_and_maintenance_manual.pdf Saltwater resistant M4 grade 2 titanium screws Saltwater resistant parabolic rubber feet for acoustic decoupling Extreme low noise brushless DC-delivery pump with external power electronics High efficient technology, Sine Wave for very quiet running Inlet and Outlet complete with DIN connection, compact dimensions Easy usage and maintenance, low risk of calcification compact design against vibrations and oscillation CE conformity, developed and built high quality touchscreen display with feeding function (protection against dry-running, over heating, over voltage, blocking etc.) included in the scope of delivery: Pump with 2m supply line Controller with 1,5m supply line Power plug with 1,5m supply line / rubber connector Nozzle with Air- and Ozone connection Manual German/English Operating_and_maintenance_manual.pdf
