Description

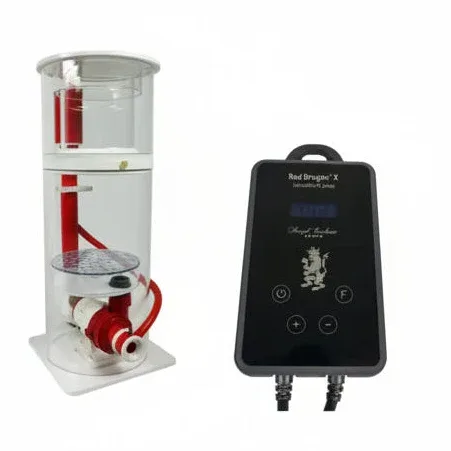

PRODUCTS DESCRIPTION for aquariums up to 1.000 liter hard facts Mini Bubble King 200 extra slim VS (24V Technology) : max. 1500 l/h air-intake // max. 4.000 l/h water-intake with Red Dragon ® X pump 50 Watt / 1.500 l/h air intake Base plate: 22 cm x 22 cm / height ~ 56 cm Technical data Mini Bubble King 200 extra slim VS: Skimmer-pump: Red Dragon ® X pump 50 Watt / 1.500 l/h air intake Delivery rate: max. 1.500 l/h air-intake // max. 4.000 l/h water-intake Wattage – active power: P = 15-50 Watt/h Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available) (24V Technology) Protection class: IP 68 Water level: ~ 130 mm up to ~ 300 mm Weight skimmer: 7.1 kg inclusiv pump and controller Height of intake side: center 70 mm Dimension skimmer: 300 mm wide / 220 mm length / ~ 555 mm height Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf MBK 200 RDX manual following soon Red Dragon ® X pump 50Watt 1.500 l/h Technical data Red Dragon ® X pump 50 Watt / 1.500 l/h air intake : max. 50 Watt/h, adjustable 15-50 Watt speed adjustable Brushless DC pump (24V Technology) Intake side: Nozzle with ozone & air plug Pressure side: reducing ring Ø 32 mm Delivery rate: max. 1.500 l/h air-intake // max. 4.000 l/h water-intake Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available) (24V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump: 2,3 kg Dimension pump: 110 mm wide / 190 mm length / ~ 150 mm height Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height RDX Skimmer Pump – Operating_and_maintenance_manual.pdf Saltwater resistant M4 grade 2 titanium screws Saltwater resistant parabolic rubber feet for acoustic decoupling Extreme low noise brushless DC-delivery pump with external control electronics High efficient technology, Sine Wave for very quiet running Easy usage and maintenance, low risk of calcification compact design against vibrations and oscillation CE conformity, developed and built high quality touchscreen display with feeding function (protection against dry-running, over heating, over voltage, blocking etc.) included in the scope of delivery: Pump with 2m supply line Controller with 1,5m supply line Power plug with 1,5m supply line / rubber connector Nozzle with Air- and Ozone connection Manual German/English
